LEAD TIME: 5-7 Weeks

Introducing the New and Improved “SUPER-QUAD” by Patriot Antenna Labs – Performance, Durability, and Cutting-Edge Technology All in One!
Patriot Antenna Labs proudly presents the new and improved “SUPER-QUAD” antenna, built with advanced Co-Inductive technology and an array of high-performance features designed to elevate your communication experience. Whether you’re a seasoned operator, a previous PDL II owner, or just getting started, the “SUPER-QUAD” delivers 12 dB of high gain, superior front-to-back rejection, and a level of durability that outperforms anything on the market.
Why Choose the “SUPER-QUAD” by Patriot Antenna Labs?

Unmatched High Gain of 12 dB – Experience powerful, long-range communication with an impressive 12 dB gain. The Orbital Gamma Match design maximizes efficiency, ensuring that you receive clear, reliable signals over longer distances with minimal loss.

32 dB Front-to-Back Rejection – The “SUPER-QUAD” excels in both Horizontal and Vertical Polarization, providing a 32 dB front-to-back rejection. This ensures that you can focus your signal where you need it most, minimizing unwanted interference for cleaner and more reliable transmissions.

Burn-Out Proof & Built to Handle 2000 Watts Minimum – The “SUPER-QUAD” is burn-out proof, as it does not rely on traditional coils. This design allows it to withstand up to 2000 + watts of input power, so you can operate with confidence, even at high power levels, without worrying about failures or degradation.

DC Grounded for Superior Lightning Protection – The “SUPER-QUAD” features DC grounded construction, offering better lightning protection than any commercially available lightning protector. It’s built to handle the toughest weather, keeping your equipment safe and operational no matter the conditions.

Versatile and Broadband – The “SUPER-QUAD” is optimized for use on the 10m, 11m, and 12m bands, providing a 1.2:1 VSWR on 11 meters for exceptional efficiency. It’s easily tuned for 10m and 12m with the use of an external antenna tuner, making it a perfect choice for a wide range of communication needs.

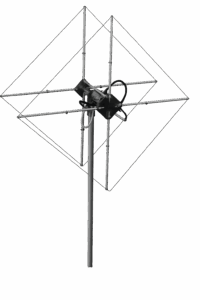

“SUPER-QUAD” ANTENNA

The “SUPER-QUAD” uses a Horizontal/Vertical Switch Box , allowing you to quickly and easily switch between polarizations based on your operational needs, whether you’re working local or long-distance.

Advanced Materials for Durability – One of the most significant upgrades to the “SUPER- QUAD” is the use of new one-piece 6061 T6 aluminum metal hubs and advanced Plastic Hubs replacing the old plastic hubs that cracked and degraded over time. The one-piece metal hubs provide superior conductivity to the antenna elements, enhancing performance while ensuring long-term reliability. Combined with all-stainless hardware, assembly is quick and easy, and your antenna will stand the test of time.

Compact, Yet Powerful – Despite its powerful performance, the “SUPER-QUAD” has a boom length of just 4 feet 10 inches, making it compact and ideal for those with limited space. Its size doesn’t sacrifice performance – you get exceptional results without compromising on space.
Key Features of the Patriot Antenna Labs “SUPER-QUAD”:
• 12 dB High Gain for superior signal strength and long-range communication.
• 32 dB Front-to-Back Rejection for clean, interference-free signals in both horizontal and vertical polarization.
• Burn-Out Proof Design – Capable of withstanding up to 2000 + watts of input power without coils.
• DC Grounded Construction for superior lightning protection.
• 1.2:1 VSWR on 11 meters and easily tuned for 10m and 12m with an external antenna tuner.
• New One-Piece 6061 T6 Aluminum Hubs for improved conductivity and durability, and ease of assembly.
• New Advanced Material Plastic Hub for enhanced reliability in all types of outside environments.
• All-Stainless Hardware for easy assembly and long-term reliability.
• Compact Size with a 4’ 10” boom length.
• Horizontal/Vertical Switch Box for flexible operation.

Perfect For:
• CB/Amateur Radio Operators looking for an antenna that combines high performance, durability, and easy installation with Vertical and Horizontal capabilities,
• Emergency Response Teams that need reliable, high-power communication with robust lightning protection.
• Long-Distance Communicators who demand superior front-to-back rejection and high gain.
• Operators living in Valleys or mountainous areas will find the “SUPER-QUAD” exceptionally effective at “Getting Out and Receiving!”
• CB/Amateur Radio Enthusiasts seeking cutting-edge technology with modern materials and effortless assembly.
Upgrade to the new Updated and Re-Engineered “SUPER-QUAD” by Patriot Antenna Labs – where advanced materials, high gain, and superior construction come together to deliver unmatched performance. Whether you’re operating on 10m, 11m, or 12m, this antenna is built to exceed your expectations.
Pre-Order Yours Today and experience the next level of communication with the PATRIOT ANTENNA LABS “SUPER QUAD” – the antenna that’s built to last, deliver, and outperform!
Patriot Antenna Labs – Innovating for Excellence, Engineering for Reliability.
Website: www.patriotantennalabs.com
Email: help@patriotantennalabs.com
Phone: 772-485-9786 (Ask for Paul) or 772-789-0100 (Ask for John)
